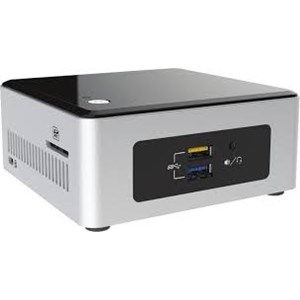

Intel BOXNUC5PPYH NUC Kit Mini PC
Pentium N3700(1.60GHz, 2.40GHz Turbo), 1xDDR3L-1333/1600 1.35V SO-DIMM, 1x2.5" HDD/SSD Bay, Intel HD, WiFi, GigLAN, USB3.0, NO O/S

No Longer Available

Part Number:

398966

(?) Brand:

Intel Web Site

Manuf No:

BOXNUC5PPYH

Shipping Weight:

2.5 KG (Includes product packaging)
Estimate Shipping

Date Added:

30/9/2015

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

BOXNUC5PPYH, SYIBOXNUC5PPYH, SYI-BOXNUC5PPYH, 2975232, 735858300018, 5032037075206

Intel NUC Kit NUC5PPYH Mini PC

Product Overview

NUC5PPYH is one of the most fully featured IntelNUCs. Equipped with a quad-core Pentium processor, this Intel NUC includes new features such as a VGA port, SDXC card slot and TOSLINK* audio output while continuing to offer 4x USB 3.0 ports, 4K video support, and 802.11ac Wi-Fi*. Also, weve secured the base with the Kensington lock, significantly improving IT asset security. From entry-level consumers in emerging markets, to organizations looking for a value-oriented mini-PC, NUC5PPYH is the smart choice.

Introducing the Intel NUC

Small Package, Big Potential

The Intel NUC is an energy-efficient, fully functioning PC that not only fits your performance needsit fits in the palm of your hand.

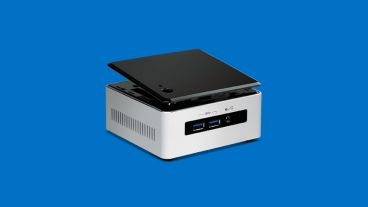

The Kit

The Intel NUC kit is available from various retailers and includes a highly customizable four-by-four-inch board that is ready to accept the memory, hard drive, and operating system you choose to install.

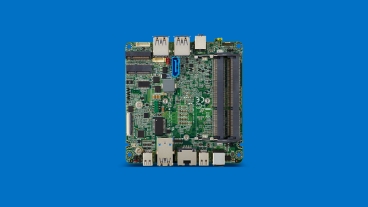

The Board

The four-by-four-inch Intel NUC board comes complete with a soldered-on processor. The board can be purchased independently of the kit, giving you the flexibility to choose the chassis that best suits your needs.

Explore the Intel NUC

Browse the Product Line

Take a closer look at the various Intel NUC models, their specifications, and unique capabilities and features.

What Can You Use It For?

From home theater systems, to digital signs, find out how others are using the space-saving Intel NUC in their home or business.

Compare and Contrast

View the various Intel NUC configurations side-by-side to find out which model best fits your specific needs.

Products and Technologies

Intel HD Graphics

Enjoy a gorgeous HD visual experience with no extra graphics card required.

Intel vPro Technology

Add a layer of built-in protection to your business, including increased threat management, identity and website access point protection, and more.

Intel High Definition Audio

The Intel High Definition Audio specification delivers crystal clear sound for everything from music to movies.

Intel Solid-State Drives

Transform your computing experience with lightning-fast Intel Solid-State Drives that take storage and performance to the next level.

Intel Wireless Products

Get 3x more speed, and far less clutter with Intel wireless products that help make surfing, downloading, and networking a breeze.

Intel NUC Ecosystem Catalog

Provides the technical specifications for the Intel NUC ecosystem, including specs for tested hardware, design-ready and design-in-progress chassis, and peripherals.

Specifications

Essentials
Status	Launched
Launch Date	Q3'15
Expected Discontinuance	See Roadmap
Board Form Factor	UCFF (4" x 4")
Socket	Soldered-down BGA
Internal Drive Form Factor	2.5" Drive
# of Internal Drives Supported	1
Embedded Options Available	No
Lithography	14 nm
TDP	6 W
DC Input Voltage Supported	12-19 VDC


Board Chipset	Intel Pentium Processor N3700 (2M Cache, up to 2.40 GHz)
Description	Other features: Includes SDXC card slot
Processor Included	Intel Pentium Processor N3700 (2M Cache, up to 2.40 GHz)
Warranty Period	3 yrs

Memory Specifications
Max Memory Size (dependent on memory type)	8 GB
Memory Types	DDR3L-1333/1600 1.35V SO-DIMM
Max # of Memory Channels	1
Max Memory Bandwidth	12.8 GB/s
Max # of DIMMs	1
ECC Memory Supported	No

Graphics Specifications
Integrated Graphics	Yes
Graphics Output	VGA (HDB15); HDMI 1.4b
Intel Clear Video Technology	Yes
# of Displays Supported	2

Expansion Options
PCI Express Revision	Gen2
PCI Express Configurations	M.2 slot with PCIe X1 lane

I/O Specifications
USB Revision	2.0 3.0
# of USB Ports	6
USB 2.0 Configuration (External + Internal)	0 + 2
USB 3.0 Configuration (External + Internal)	2B 2F + 0
Total # of SATA Ports	1
Max # of SATA 6.0 Gb/s Ports	1
Audio (back channel + front channel)	7.1 digital (HDMI); L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN	10/100/1000
Integrated Wifi	Intel Wireless-AC 3165 + BT 4.0
Integrated Bluetooth	Yes
S/PDIF Out Connector	TOSLINK

Package Specifications
Low Halogen Options Available	See MDDS

Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel vPro Technology	No
TPM	No
Intel HD Audio Technology	Yes
Intel Virtualization Technology (VT-x)	Yes

No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 months*

Full manufacturers warranty details are available at the manufacturers (Intel) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
